Mini DC controller with RF

For development of small dc control systems and remote operation

This mini module is multi-configurable to opperate as different products.

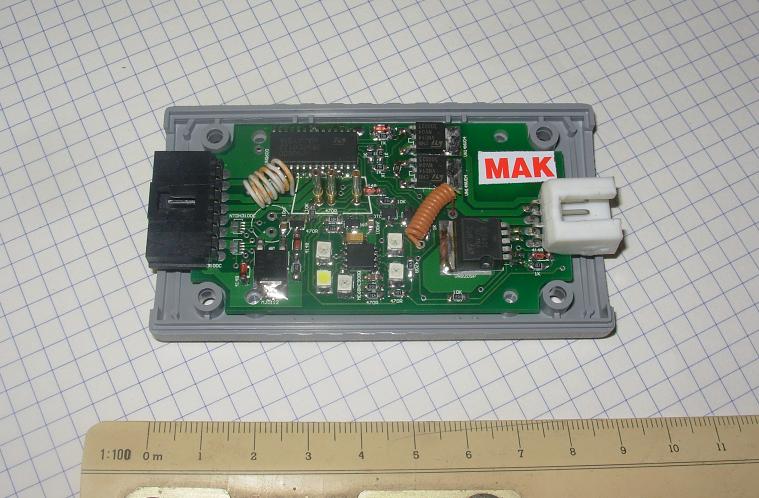

Super small multi purpose platform
This controller may be small but packs quite a punch for its size.This unit can drive a single motor in both forward and reverse (door lock or gate opener) and has both VHF and LF transmitt and recieve functions.		For use as development module for both remote transmitter and reciever (not at same time!) for remote opperation designs 30 meters for VHF opperation and 3 meters for LF opperation
Multiple configurations are possible		Up to 24V operation 5x25 Amp high side drives 5Amp continuous 2x10 Amp low side drives 1x35 Amp drive configurable as input for solar charge function VHF transmitter Bridge driver for 125kHz transmitt VHF and braud band LF reciever
Fits into generic 90mmx50mmx15mm housing		8 digital inputs Combine 2 high and 2 low drives to achieve full H bridge drive. RS232 communication Flash microprocessor
