The use of existing platforms bypasses thousands of $$ in D&D and will allow proof of concept before investing in developing your product.

All systems are custom designed for their specific application.
Existing PLATFORMS in the following areas are ready to be applied -

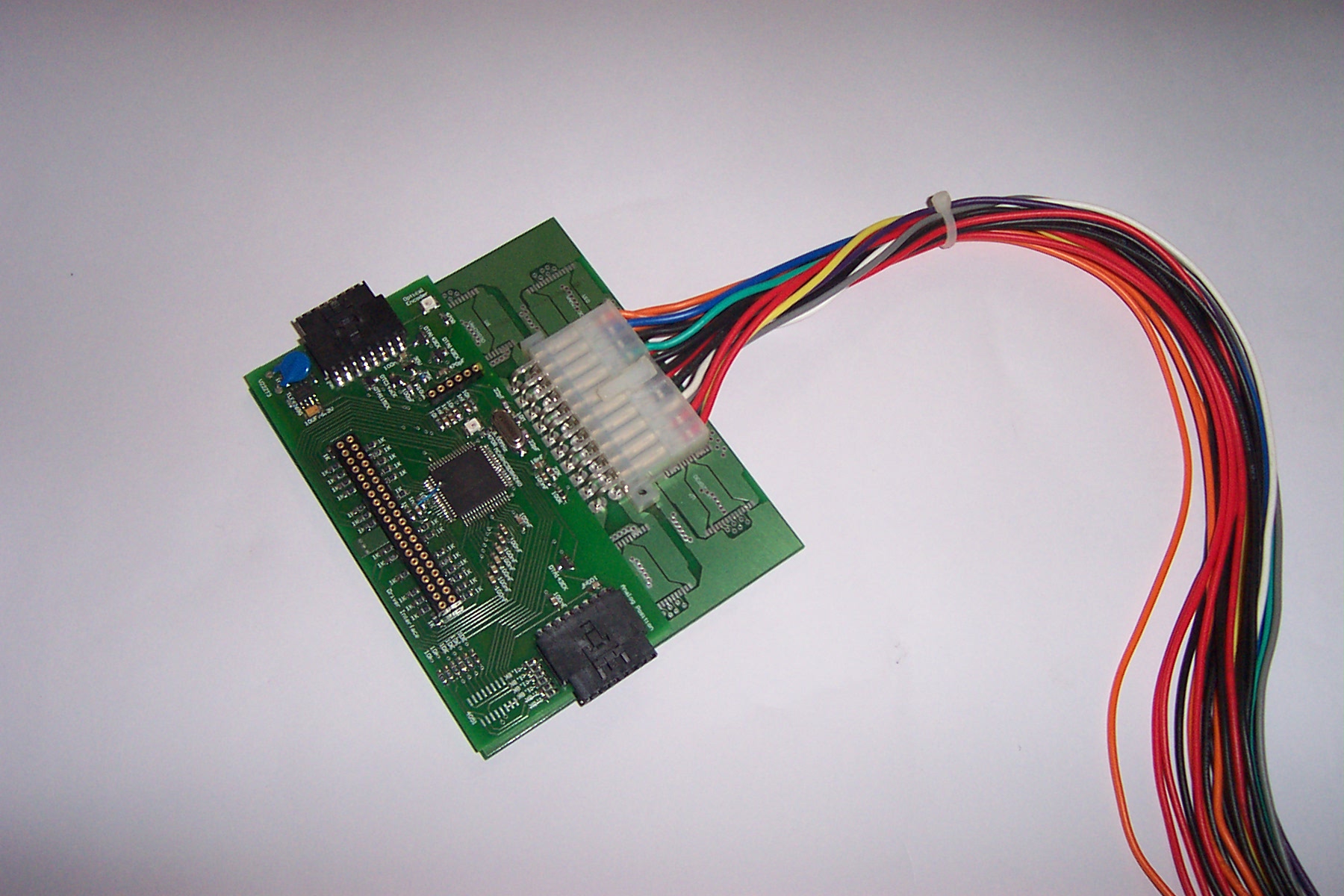

1. DC Servo Motor Controller - Robotic System
   - 6 Axis 25A drive "MADDOG" driver
   - 16V Operation
   - Industrial Robotics (see Autowinder App Video)
2. 3 Phase BLDC Controller/Inverter
   - 20 kHz pwm, charge pump for all N-Fet drivers
   - 50V operation, 400A continuous driver
   - 600Amp surge, 99% efficient
   - Electric vehicle applications (see video)
   - Aquatic vehicle applications (wait for it)
3. DC Control System with Display
   - Solar applications, regulates battery charge
   - Automotive applications
   - Power distribution (12 outputs) up to 360Amps
   - Security options
   - Remote (RF) interface for pendant key operation of power distribution and security.

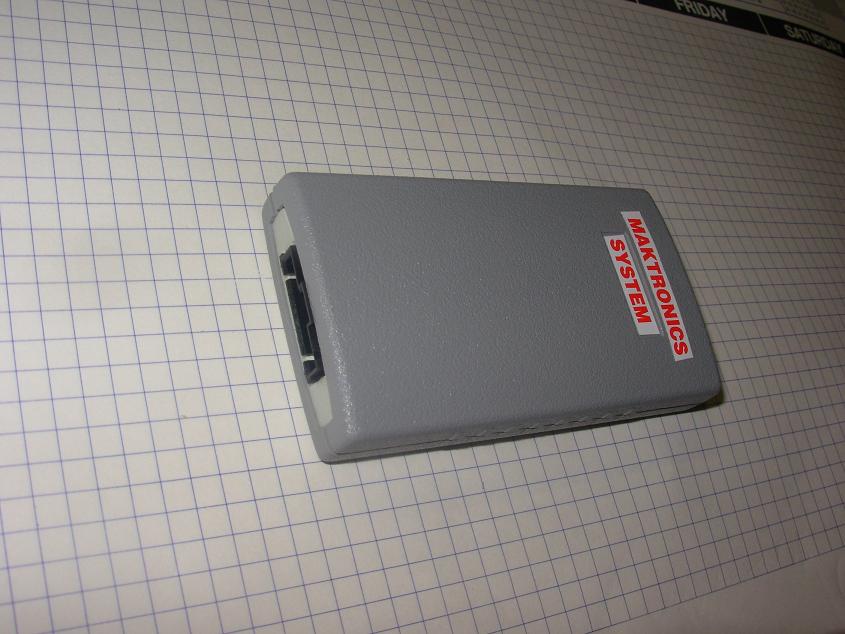

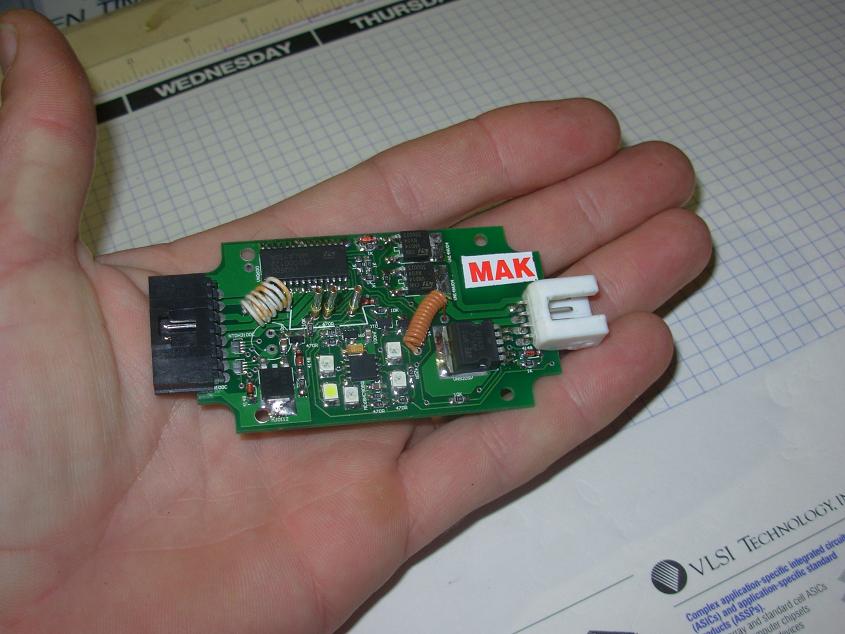

4. Mini DC Control System with RF
   - 8 way + 4 way connectors (Utilux type or terminal screw)
   - RF TX & RX (315MHz)
   - LF (125 kHz) TX & RX for passive applications
   - Fully protected electronically fused
   .....4 x 20A high side
   .....1 x 35A high side
   .....2 x 10A low side
   - Mini solar system applications
   - Central locking/security applications
   - Small enclosure 90mm x 50mm x 15mm

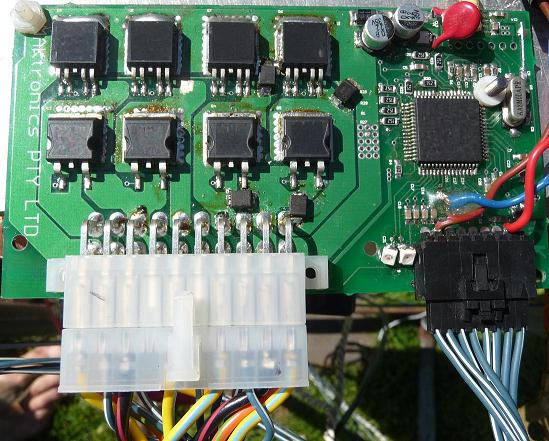

5. Dual Servo Motor Control System
   - Uses 24V DC 400W Geared Motor
   - Fully protected electronically fused
   - Patents Pending
   - Used in Jet ski Mover product
   - For use in precision robotic applications
