electronic components MAKtronics pty ltd ABN 66 058 434 272

Products

PRODUCTS DEVELOPED & DELIVERED

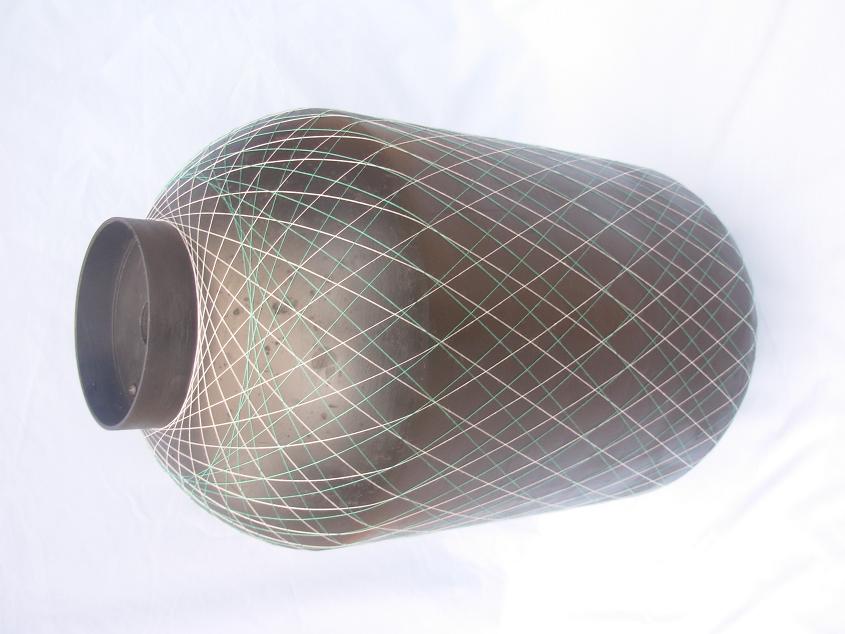

Controller for 2 Axese CNC Filament Winding Machine

Developed in conjunction with J&KAMC. Currently in use at CTA Pty Ltd.

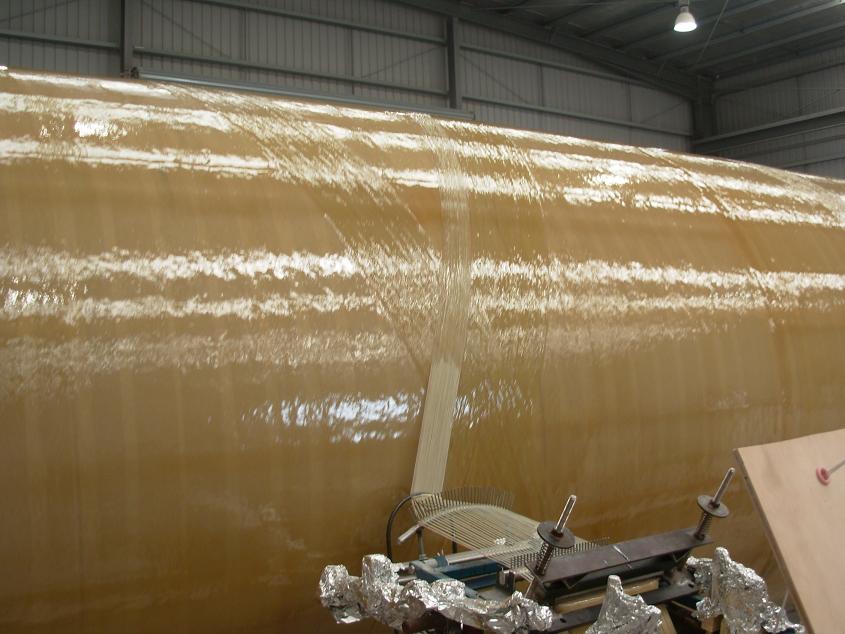

See it in action winding pipe

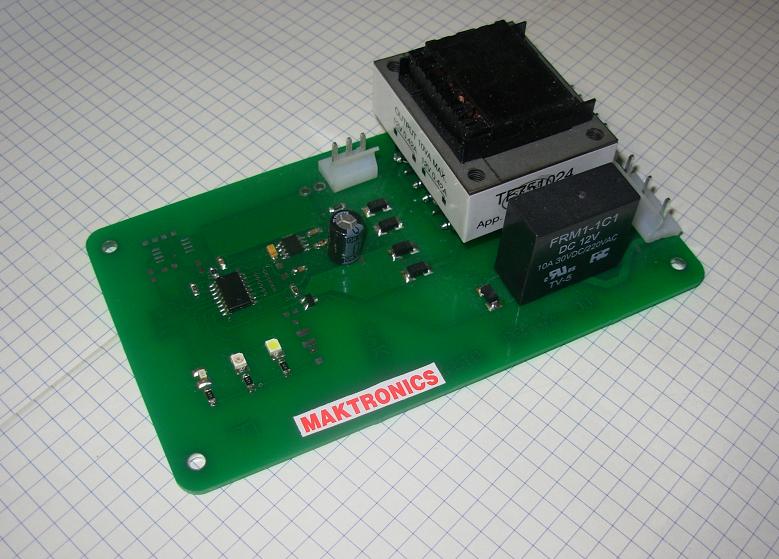

BBQ Timer Module

Developed to replace existing controllers with added features. Used throught the Mornington Peninsula on public bbqs.

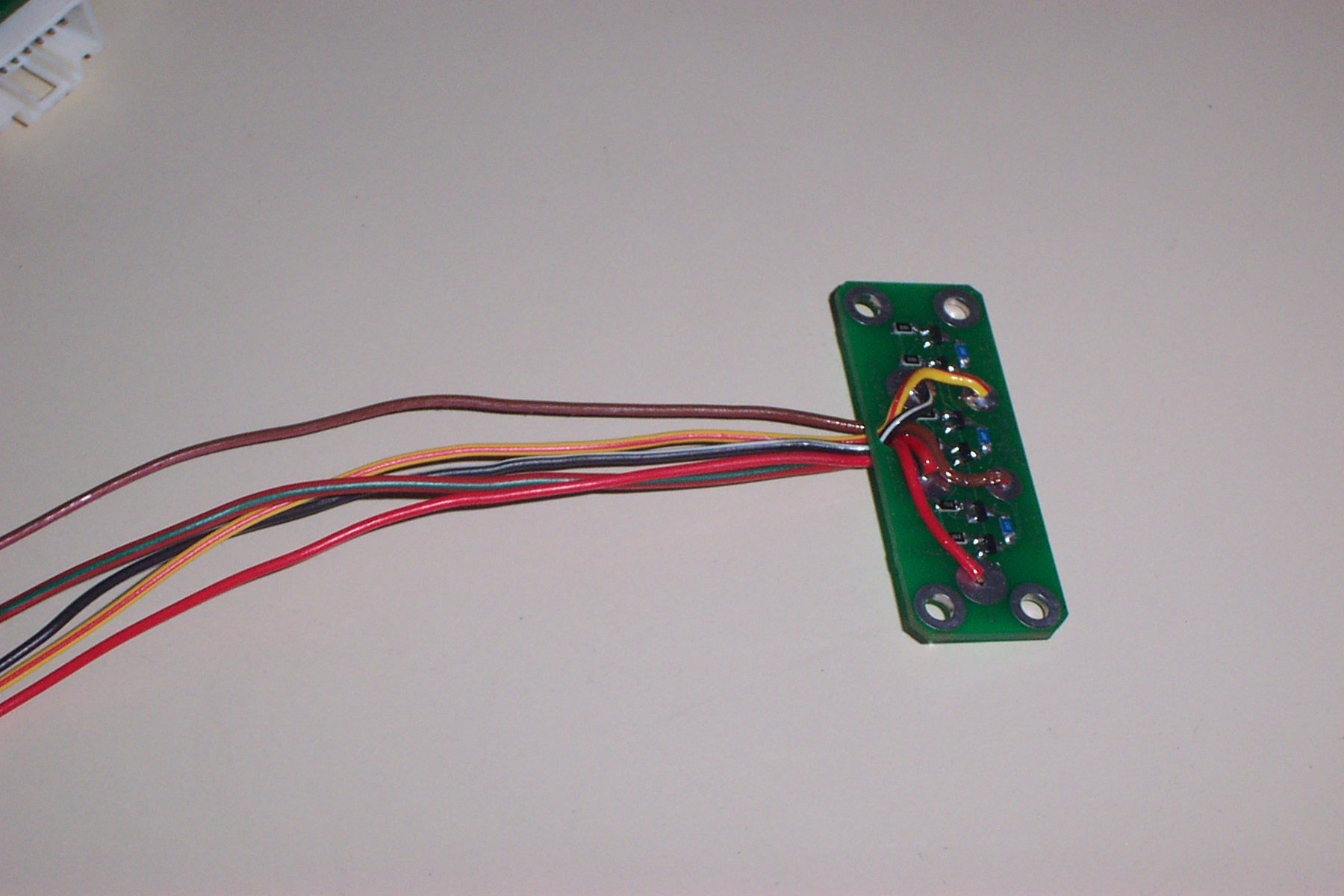

Motor Control Module
Developed for Armada Scoreboards to rectify existing control issues.
WatchDog for Life-Critical Network Developed for Intelnet Pty Ltd for use in Mt Eliza Centre's automatic emergency response unit. Constant monitoring of phone lines and network operation.
Motorbike ADR Brake Test Module Control electronics to measure speed, velocity and acceleration from auxiliary wheel, pressure transducers measure hydraulic pressure or force applied in brake system to evaluate brake integrity due to overheating and wet conditions.
PRODUCTS UNDER DEVELOPMENT
3 Axese CNC Filament Winding Machine
Under development with J&KAMC. for use under licence agreement/partnership.

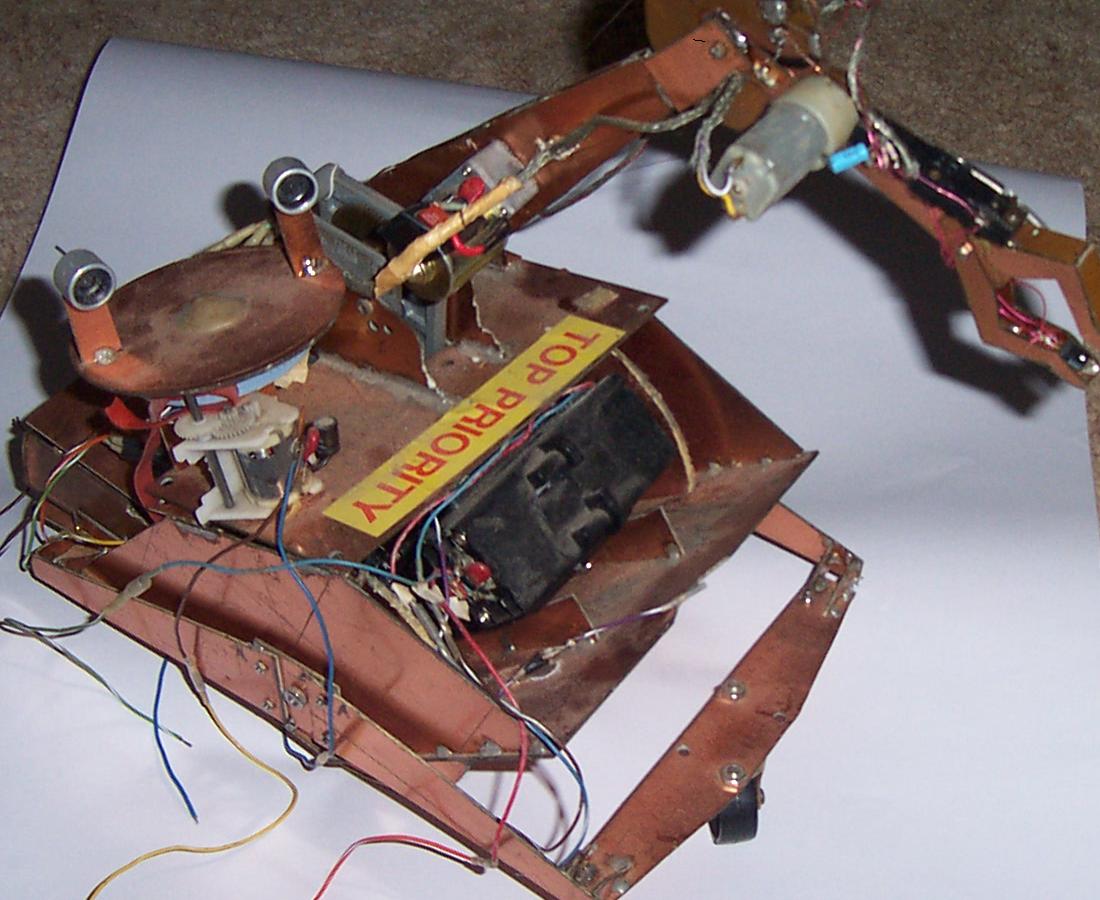

6 Axese Robot Under development as a novelty item.

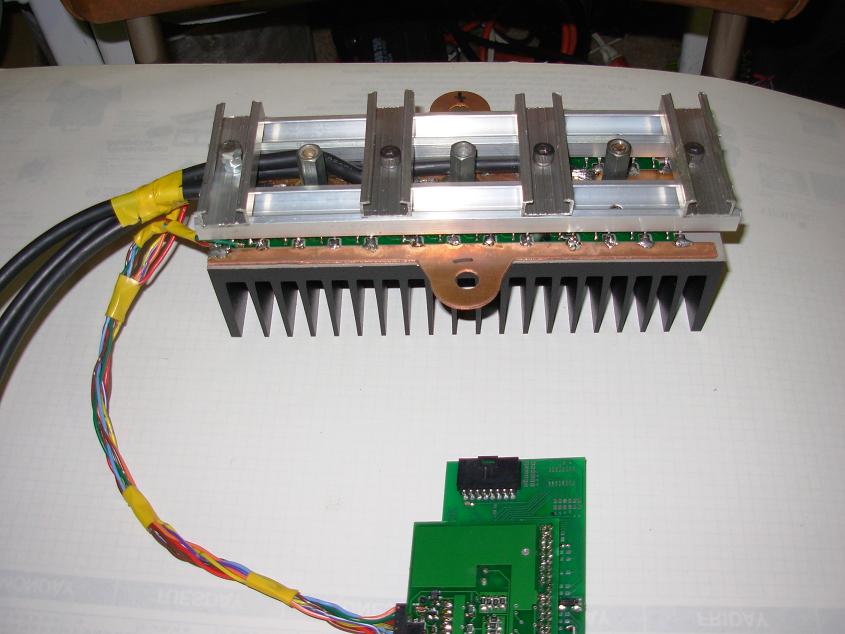

3 Phase BLDC Controller/Inverter
  • Up to 50V operation
  • 400Amp continuous
  • 600 Amp surge
  • 3600Amp pulsed
  • Electric vehicle applications (see video)
  • Aquatic applications (watch this spot!)
  • Industrial applications
Solar Control Module
  • Regulates battery charging
  • Provides 12 electronically fused power feeds
  • Displays battery volts, charge rate, usage rate, etc
  • Security function
  • Sun tracking function for Solar Panel

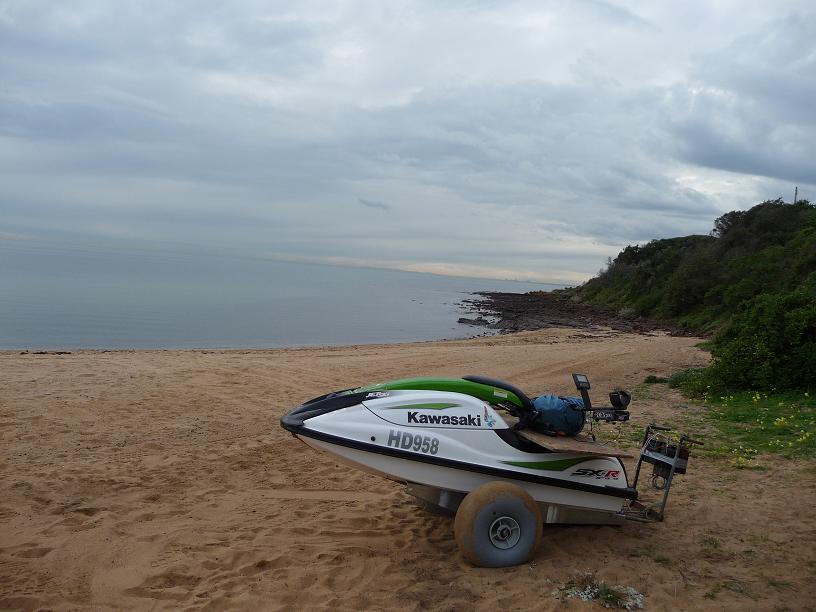

Electric Movers

The dimensional model proved the concept and now the production frame here. This design has an Aluminium frame and servo motors from the dual servo drive platform. This allows effortless movement across the softest sand and plenty of torque to pull out of any incline, plus an auto hold mode to prevent movement when loading with the electric winch.

Contact us if you wish to purchase a Beta prototype.

See more videos- speed hump (WMV),Across sand (WMV),Drop off stuff (WMV),Manouver (WMV) ,Regenerate (WMV)

This will be released as a product soon!

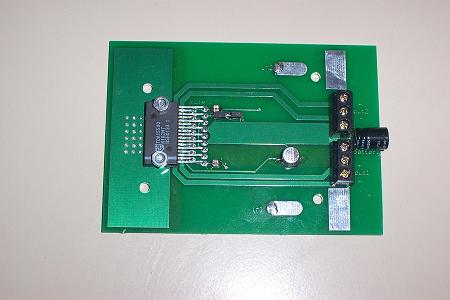

Aqua Power Amplifier
  • This waterproof audio amp is great for watercraft, camping, etc.
  • 42W stereo
  • Plugs into iPod or other player
  • Runs on 12V
